Description
Features
- Long-life performance & high operation dependability
- Anti-intrusion, Anti-reverse & Anti-trailing functions
- Single directional or Bi-directional options
- Smooth, noise-free running system
- Automatic reset functions
- LED indicator
Specifications

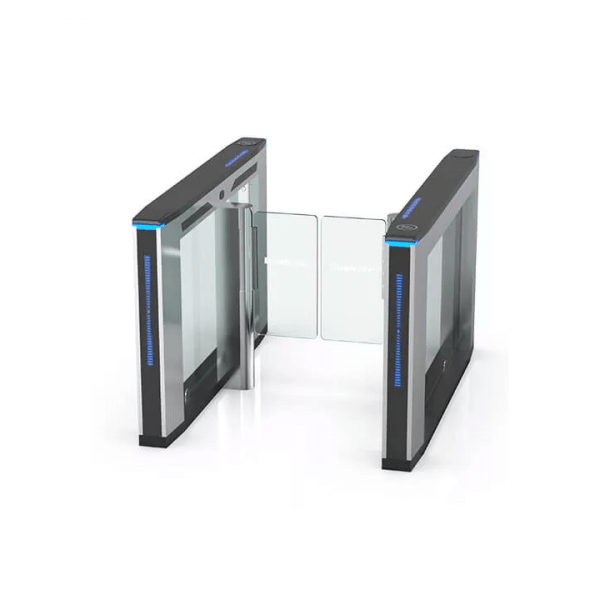

Model No. : DSN-70
Type : Nebula Speed Gate
Certification : Compliance CE, RHOS
Communication : I Dry contact, Relay signal, RS485
Framework Material : 304 brushed stainless steel+ High-end black painting
Arms material : Plexiglas-transparency
Dimension : 1600 * 150 * 980mm
Net Weight : 85kg/pcs (single core), 105kg/pcs (double core)
Passage Width : 650mm (standard), 1000mm (handicap)
Passing Direction : Single directional / Bi-directional
MCBF : 15 million
Power Supply : AC220V/110V, 50/60Hz
Operation Voltage : 24V DC
Power Consumption : 90-100W
Operation Temperature : -20 °C – 75 °C
Operation Humidity : 0 – 95% (No freeze)
Working Environment : Indoor / Outdoor (shelter)
Flow Rate : 55 people per minute
LED Indicator : Unique blue LED strip (front+ top+ arm)
Infrared Sensor : 4 pairs(standard)
Emergency : Automatic arm open when power off
Flexibility : Integrate with any access control.
